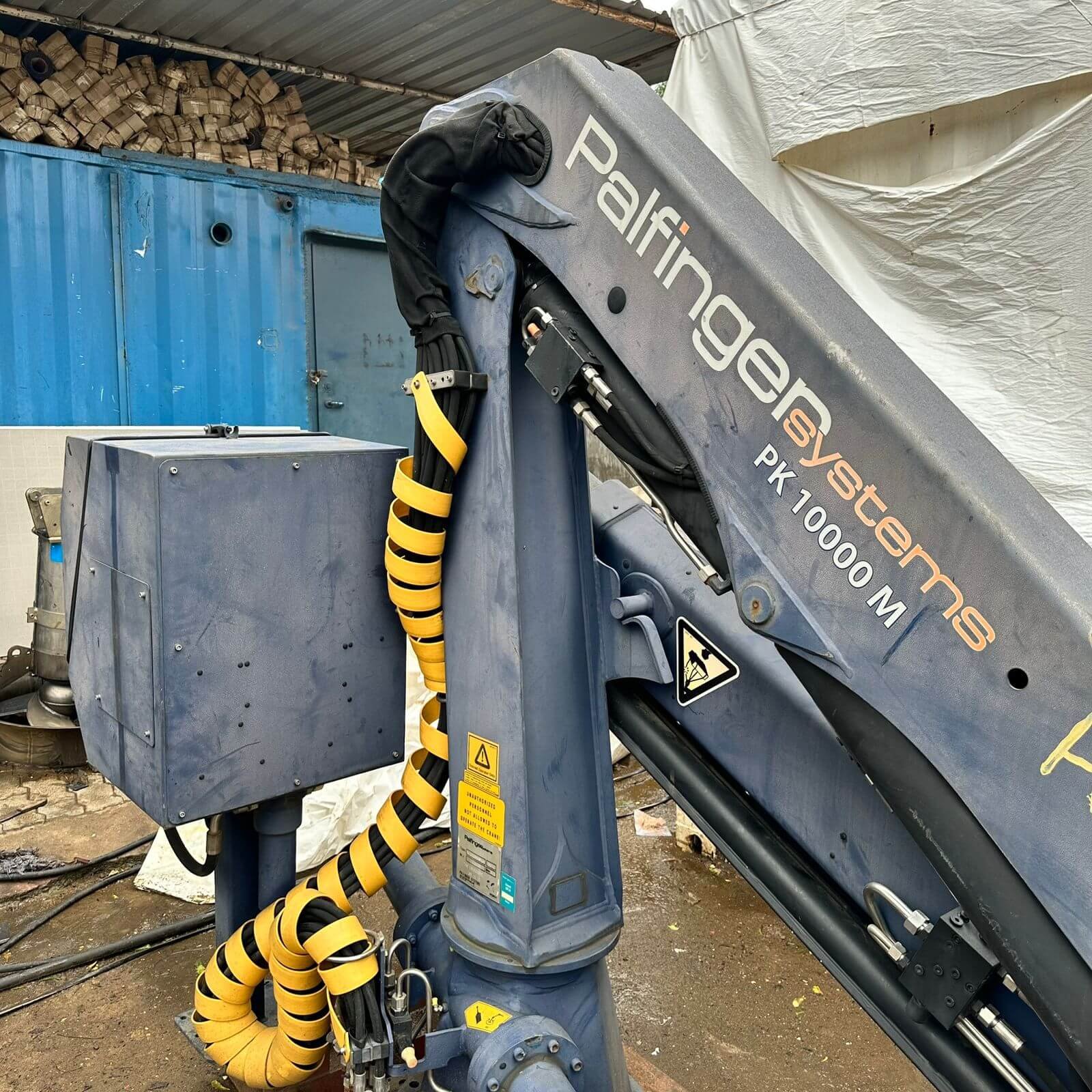

Palfinger PK10000MAS Foldable Knuckle Boom Crane (2010)

The PALFINGER PK10000MAS is a truck-mounted hydraulic knuckle boom crane, a variant of the popular PK10000 series. It is designed for general duty lifting and material handling tasks, offering a high ratio of lifting capacity to its own weight.

Specifications

  • Max. lifting moment: 9.5 meter-ton (mt)
  • Max. lifting capacity: 5,700 kg (5.7 metric tons)
  • Max. hydraulic outreach: 12.5 meters (for the standard PK10000)
  • Slewing angle: 400°
  • Dead weight (standard): 1,031 kg
  • Max. operating pressure: 315 bar
  • Stabilizer spread: 3.3 m (mechanical) or 4.9 m / 5.6 m (hydraulic)

Key features

  • Lightweight design: Constructed with high-strength, fine-grained structural steel to maximize payload capacity.
  • Advanced boom profile: Features a hexagonal boom profile for excellent outreach and lifting performance.
  • Safety controls: The crane can be operated with either a top seat or radio control. Radio controls, available as an option, provide a display with the current capacity status to ensure maximum safety.
  • Hydraulic accessories: Can be equipped with a range of hydraulic attachments for increased versatility.
  • Surface protection: Features a KTL coating, a durable cathodic dip painting process, for superior corrosion protection.
